Coating facilities

ITS Collaborative Coating Robot

ArtiCoating – the solution for modern coating facilities

The E10-L-Ex robot brings a new level of automation to industrial coating. It combines unmatched precision with maximum flexibility, is intuitively operated, and enables quick operator training. Thanks to its ATEX and CE certifications, it is an ideal choice even for demanding operations, including explosive environments.

Why choose a robotic solution from ITS?

Czech manufacturer with its own service department
The only company in Europe offering a collaborative coating robot for explosion zones 22/21 and 2/1
Versatility – the robot is suitable for both powder and wet coating, with flexibility for different technologies

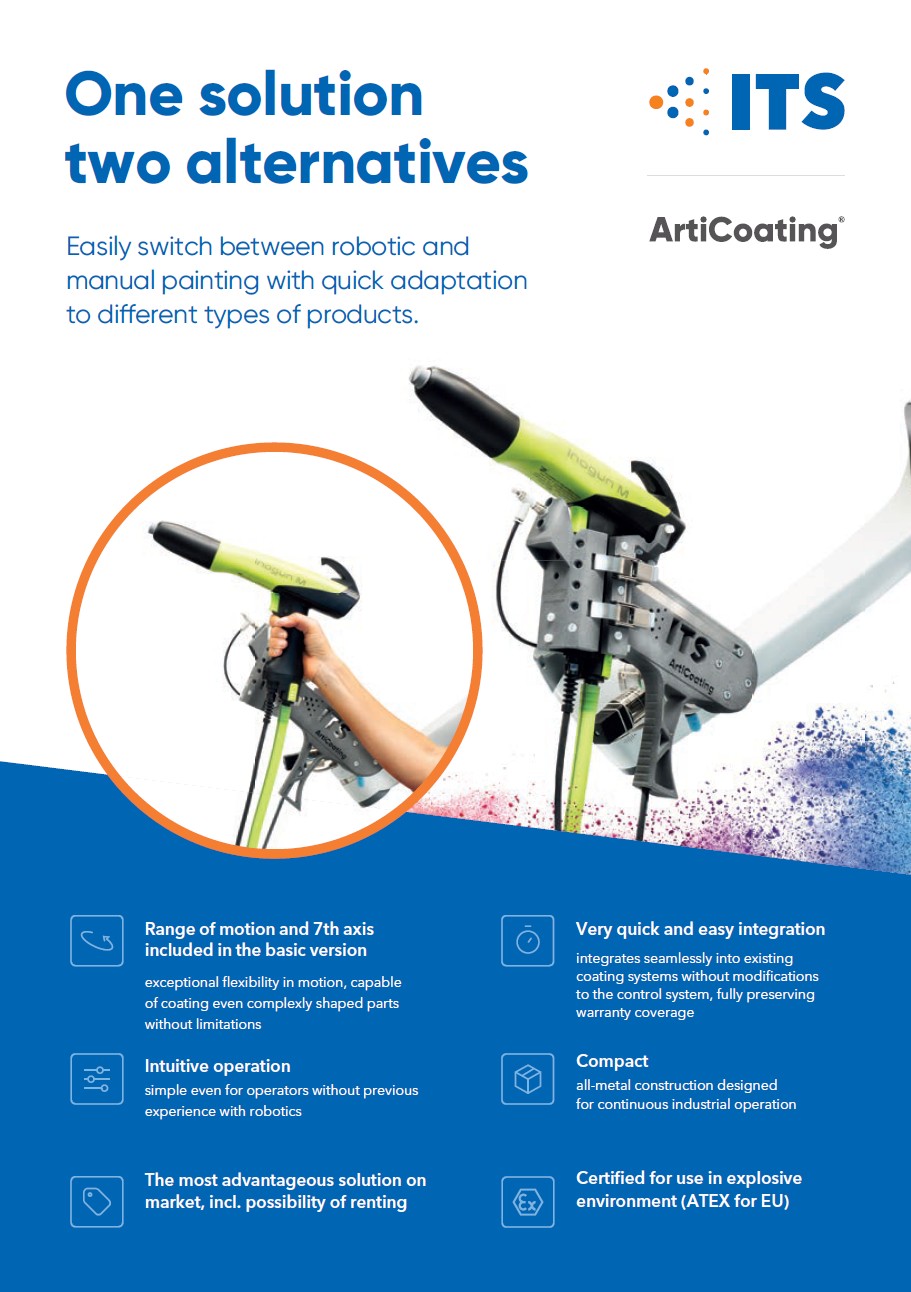

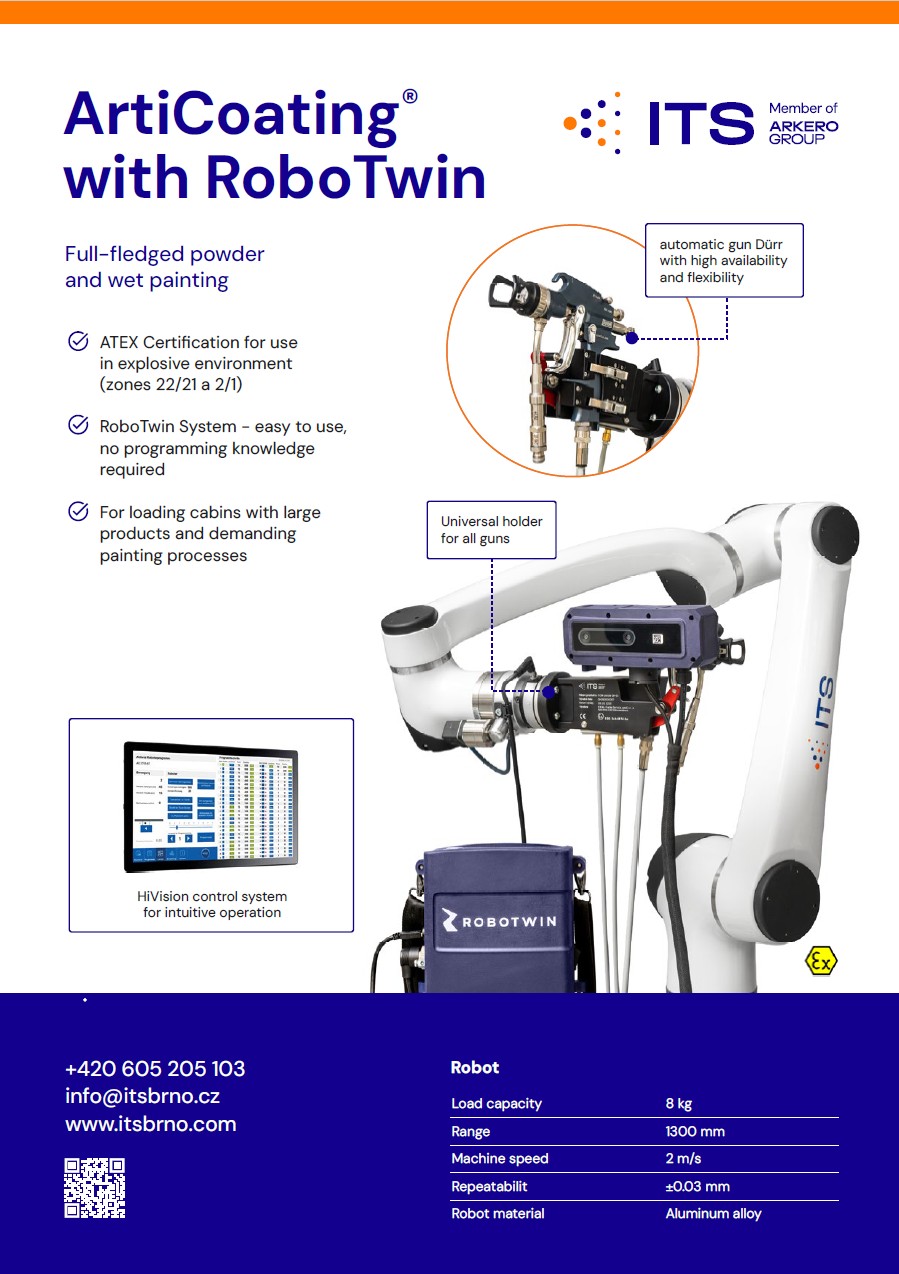

ArtiCoating – robotic and manual coating in one
For your coating shop, we will design, deliver, install, train operators, and provide service and maintenance

Technical specifications of the ITS robot – E10-L-Ex

Weight: 45 kg
Payload: 8 kg
Reach: 1300 mm
Tool speed: 2 m/s
Repeatability: ±0.03 mm
Seventh axis: stroke 1 m (extendable up to 4 m), payload up to 150 kg
Protection rating: IP66, robust all-metal design for continuous industrial operation

Funkce

Functions of the robot

Easy handling

The ITS collaborative robot works in place of the painter, handles complex positions inaccessible to humans, offers easy learning, fast installation, and simple operation.

Ease of learning

The ITS robot makes the painter’s work easier thanks to intuitive operation and clear editing of learned positions. Operator training and robot programming are very simple.

Compatibility with spray guns of various brands

The robot is suitable for all spray gun manufacturers (Sames, Gema, Nordson, Wagner) and all types of spray booths. It enables easy integration, higher efficiency, and greater flexibility in coating.

Industrial-grade holder

The special holder allows a quick switch from manual to robotic coating in just a few seconds.

Control system HiVision

Our HiVision control system allows customized environment adjustments. It is durable, glass-made, and can be operated even while wearing gloves.

7th axis for flexible movement

Thanks to the 7th axis, the robot’s reach is unrestricted and it simplifies the learning process. It can be extended up to 4 m, for example, for large spray booths and boxes.
